Process analytics

Process analytics

Gas analyzers

Our analyzers monitor the O2/CO2 concentration in a wide variety of areas, whether in welding and soldering technology, the semiconductor, pharmaceutical or food industry, they are used wherever precise monitoring is required.
Through years of experience with a wide variety of customer needs and wishes, we have designed our analyzers to be flexible for many purposes and are constantly developing them further.
Equipped with intuitive menu navigation, all important parameters can be set and changed within a very short time.

Gas analyzers

Our analyzers monitor the O2/CO2 concentration in a wide variety of areas, whether in welding and soldering technology, the semiconductor, pharmaceutical or food industry, they are used wherever precise monitoring is required.
Through years of experience with a wide variety of customer needs and wishes, we have designed our analyzers to be flexible for many purposes and are constantly developing them further.
Equipped with intuitive menu navigation, all important parameters can be set and changed within a very short time.

Advantages

  • 30 years of experience, development and optimization
  • Top response time, short heat-up phase
  • Two different sizes for added flexibility
  • Durable components
  • Measurement data logging at different time intervals, output via RJ45/USB
  • Timer for filter change freely programmable
  • 5.7 inch display, intuitive operation
  • Indication of all alarms and errors on the display
  • Start measurements with external signal
  • Simple menu navigation in several languages Different RS232 protocols that can be changed                                    in the unit for communication with various Soldering,
  • packaging machines, analysers or other equipment and processes
  • Operation for user and administrator in different levels
  • Standardised 0/2-5/10 or 04-20 mA analogue signal
  • 3 backups for storing different device functions/settings
  • Barcode scanner optionally possible

Advantages

  • 30 years of experience, development and optimization
  • Top response time, short heat-up phase
  • Two different sizes for added flexibility
  • Durable components
  • Measurement data logging at different time intervals, output via RJ45/USB
  • Timer for filter change freely programmable
  • 5.7 inch display, intuitive operation
  • Indication of all alarms and errors on the display
  • Start measurements with external signal
  • Simple menu navigation in several languages Different RS232 protocols that can be changed in the unit for communication with various Soldering,
  • packaging machines, analysers or other equipment and processes
  • Operation for user and administrator in different levels
  • Standardised 0/2-5/10 or 04-20 mA analogue signal
  • 3 backups for storing different device functions/settings
  • Barcode scanner optionally possible

Standard Versions

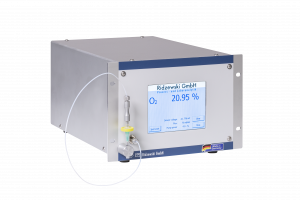

Zr-Ox EPC

…is the basic model and is used for continuous measurement of oxygen or O2/CO2 concentrations in gas mixtures.

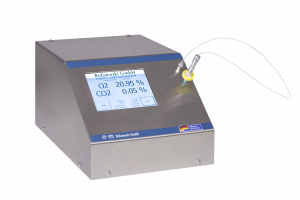

Zr-Ox EPC Spot

…is our table-top device that can be used for random sample measurement of products that are packaged industrially or also for checking individual special packages.

Zr-Ox EPC VM

…is an analyser that is used, for example, in packaging machines to continuously measure and control the oxygen or O2/CO2 concentrations in the process. Furthermore, it is possible to carry out a random sample measurement with a separate sampling to ensure additional safety.

Custom-made products

Zr-Ox EPC 3GAS

…is a more flexible modification of the basic model. The device changes the measurement automatically or externally controlled in order to monitor several processes simultaneously.

Zr-Ox EPC SMC

…is equipped with an integrated proportional valve to control the gas supply directly without an external signal or valve.

Zr-Ox EPC EXS

…is a version with an external sensor that can be installed directly in the system to minimise relative measurement errors.

Other

A fast version with a high total flow (for closed-loop systems) is also available on request.
Or if you want to measure in overpressure from 0.2 -10 bar, as well as in the high temperature range from 200°C-1200°C.
 Zr-Ox EPC SMC                    Zr-Ox EPC 3Gas                     Zr-Ox EPC EXS
 Zr-Ox EPC SMC
Zr-Ox EPC 3Gas
Zr-Ox EPC EXS
